Tailgate, Bronco

Removal

1. Unlatch tailgate latch release handle (431C62) and lower tailgate. Disconnect left and right tailgate check cables (43052) at tailgate.

2. Disconnect tailgate window motor wire at connector. Pull lead wire from tailgate body rail.

3. Support tailgate while slightly open. Remove the tailgate counterbalance torsion bar body retainer from body.

4. Remove three nuts securing left and right tailgate hinges to body.

5. Remove tailgate from vehicle.

Installation

1. Follow the removal procedure in reverse order. Tighten the tailgate hinge-to-body nuts to 28-40 Nm (21-30 lb-ft). Tighten the tailgate counterbalance torsion bar body retainer bolts to 28-40 Nm (21-30 lb-ft). Tighten the tailgate check cable bolts to 28-40 Nm (21-30 lb-ft).

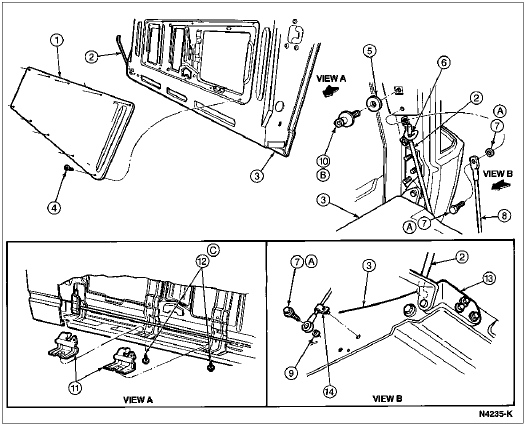

   Tailgate Installation, Bronco







   Item	Part Number	Description
   1	43221	Tailgate Panel Inside Cover
   2	44890	Luggage Compartment Door/Tailgate Hinge Torsion Bar
   3	40709	Tailgate
   4	55962-S2	Screw, Tailgate Panel Inside Cover-to-Tailgate
   5	N805584-S	Washer
   6	43050	Tailgate Counterbalance Torsion Bar Body Retainer
   7	391566-S40	Bolt and Washer, Check Cable-to-Body
   8	43052	Tailgate Check Cable
   9	383180-S40	Washer
   10	431F52	Tailgate Upper Latch Striker
   11	430A32	Torsion Bar Bracket
   12	57472-S40	Screw, Torsion Bar Bracket
   13	43000	Tailgate Hinge
   14	377105-S	Clip, Cable Check
   A	—	Tighten to 28-40 Nm (21-30 Lb-Ft)
   B	—	Tighten to 35-50 Nm (26-37 Lb-Ft)
   C	—	Tighten to 8-15 Nm (6-11 Lb-Ft)
