SECTION 5A: EEC-IV Quick Test Procedures and Appendix
Test Equipment
Required Equipment:

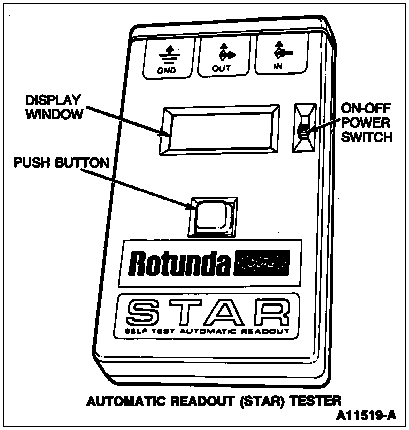

Self-Test Automatic Readout (STAR), Rotunda No. 007-00004 with cable assembly No. 007-00010. Refer to STAR Tester operation.

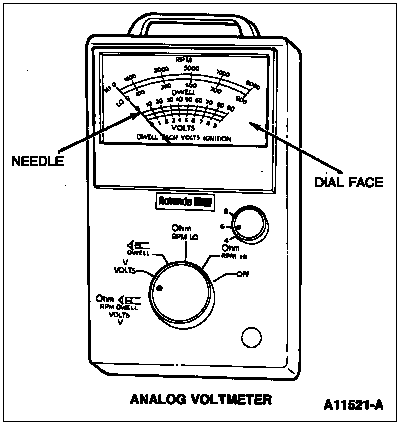

Analog volt-ohmmeter, 0 to 20V DC, (alternate to STAR).

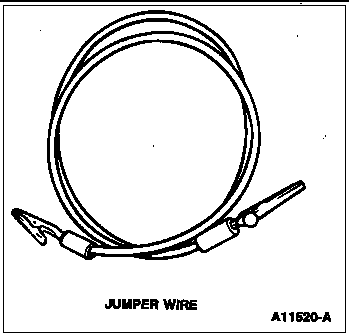

Jumper wire.

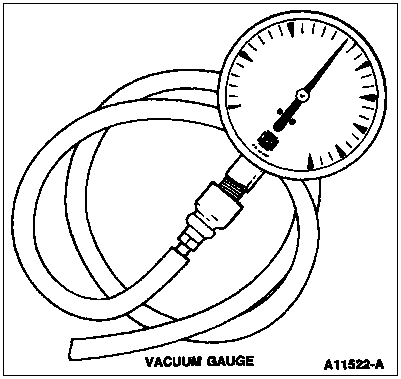

Vacuum gauge, Rotunda 059-00008 or equivalent. Range 0-30 in-Hg. Resolution 1 in-Hg.

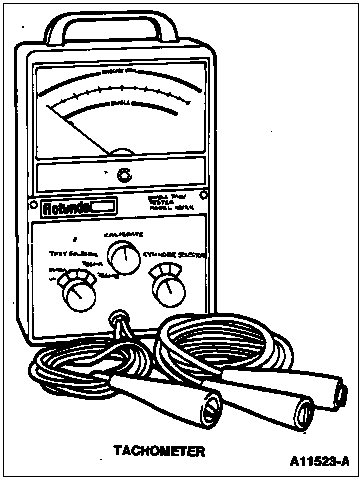

Tachometer, Rotunda No. 059-00010 or equivalent. Range 0-6,000 rpm. Accuracy ± 40 rpm. Resolution 20 rpm.

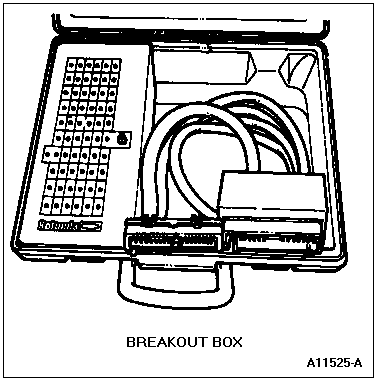

Breakout Box, Rotunda 014-00322, Special Service Tool T83L-50-EEC-IV or equivalent.

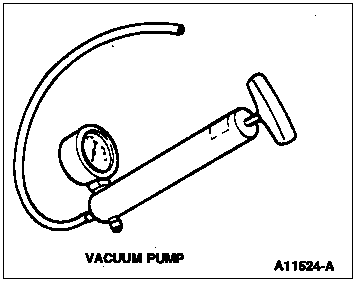

Vacuum Pump, Rotunda 021-00014 or equivalent. Range 0-30 in-Hg.

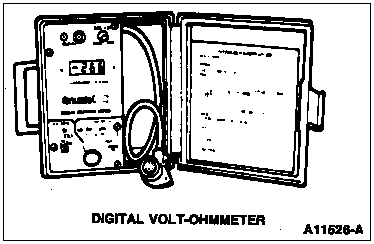

Digital Volt-Ohmmeter, Rotunda 014-00407 or equivalent. Input impedance 10 Megaohm minimum.
Optional Equipment

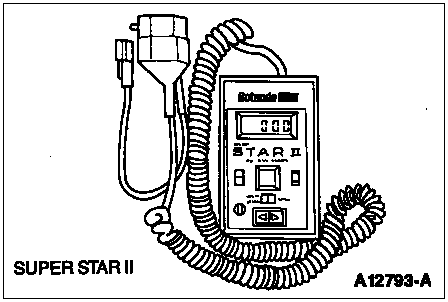

SUPER Self-Test Automatic Readout II, (SUPER STAR II), Rotunda 007-00028.

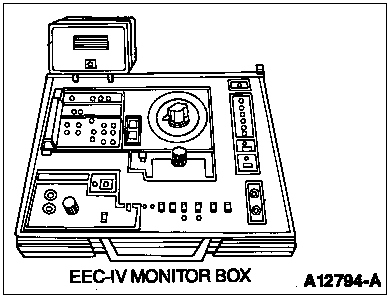

EEC-IV Monitor Box, Rotunda 007-00018.

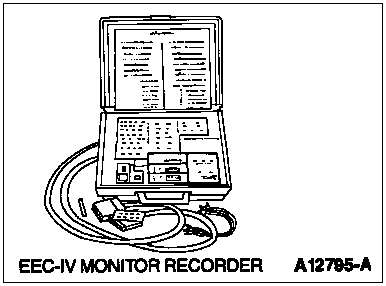

EEC-IV Monitor Recorder, Rotunda 007-00021.

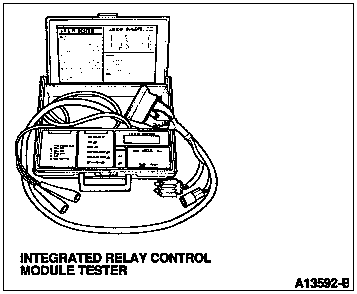

Integrated Relay Control Module (IRCM) Tester, Rotunda 007-00050.

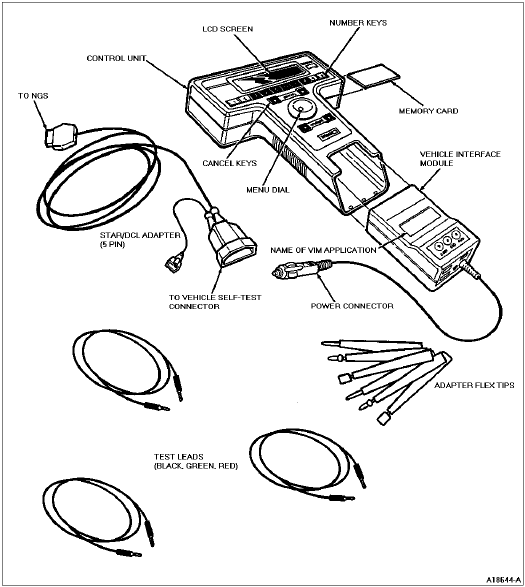

New Generation STAR (NGS) Scan Tool, Rotunda 007-00500.

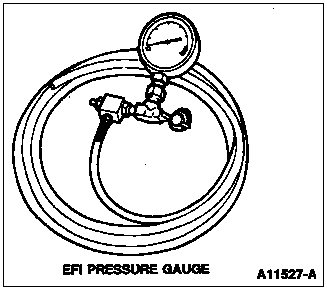

Electronic Fuel Injection Pressure Gauge EFI/CFI only, Tool T80L-9974-A or equivalent. (Use instructions. For specific applications, refer to Fuel/Engine Service Manual Group.)

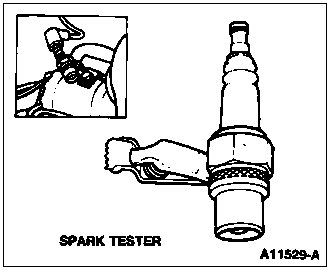

Spark tester, Tool D81P-6666-A or equivalent.

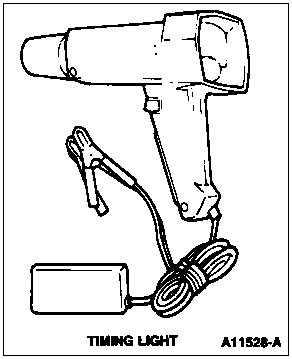

Timing light, Rotunda model 059-00006 or equivalent.

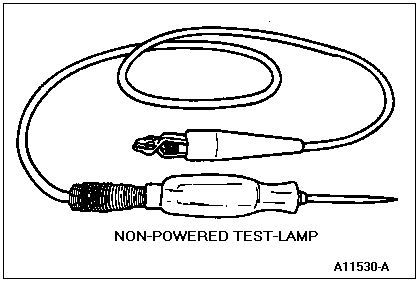

Non-powered test lamp.
Rotunda Megameter 014-00768.
Rotunda Flexible Fuel Test Kit 014-00770 or equivalent.
