Section 07-01A: Transmission, Automatic, E4OD
1996 All F-Series and Bronco with E4OD Automatic Transmission Workshop Manual
IN-VEHICLE SERVICE

Park System

Removal

  1. Remove the extension housing gasket (7086). Refer to Extension Housing Gasket in the In-Vehicle Service portion of this section.

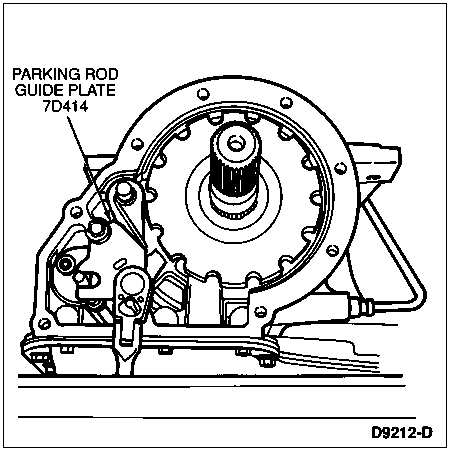

  1. Remove two bolts using a 13mm socket and remove parking rod guide plate.

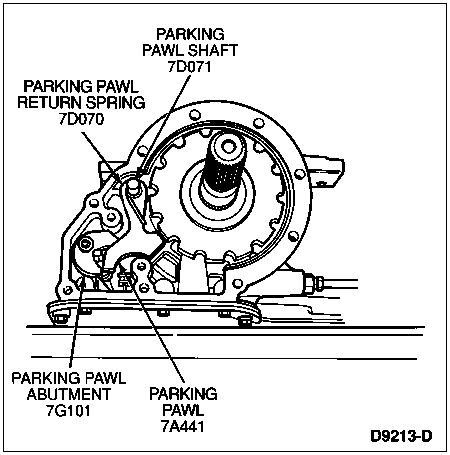

  1. Remove parking pawl return spring (7D070), parking pawl (7A441) and parking pawl shaft (7D071) from case.







Installation

  1. Follow removal procedure in reverse order.

  1. Make sure spring end rests on inside surface of case.

  1. Also make sure dimple on parking rod guide plate faces inward when installed.

  1. Tighten parking rod guide plate bolts to 22-27 Nm (16-20 lb-ft).

For internal park mechanism service, refer to Manual Control Lever Shaft Seal, Removal and Installation procedures in the In-Vehicle Service portion of this section.
